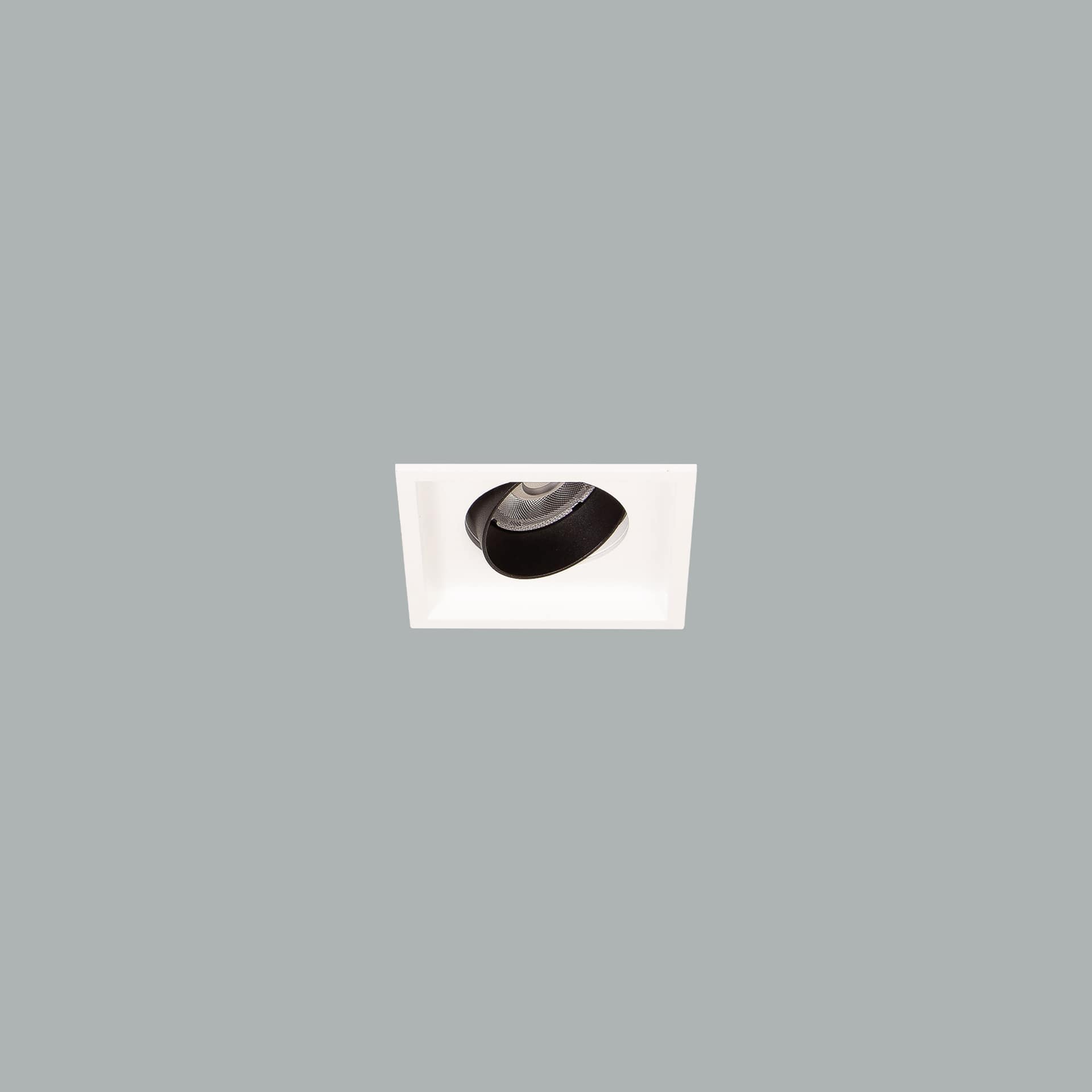

Miniflux
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 27W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Honeycomb and Color Filter, Viewfinder accessory options can be applied.
-- Very Narrow, Narrow, Medium and Wide lens angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LEDs.
-- Efficiency up to 136lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 27W | CRI>80 | I01.MLR.12001 . (..) . (...) . (..) . (..) | 2700K | 3585 |
| 3000K | 3670 | |||
| 3500K | 3672 | |||
| 4000K | 3674 | |||
| 5000K | 3747 | |||
| CRI>90 | I01.MLR.12001 . (..) . (...) . (..) . (..) | 2700K | 3351 | |
| 3000K | 3430 | |||
| 3500K | 3432 | |||
| 4000K | 3434 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.12001 . (..) . (...) . (..) . (..) | 2700K | 2680 | |
| 3000K | 2744 | |||
| 4000K | 2747 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27 | 27W - 700mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SS | 17° - Super Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | SP | 23° - Spot |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | M.E. | 34° - Medium |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

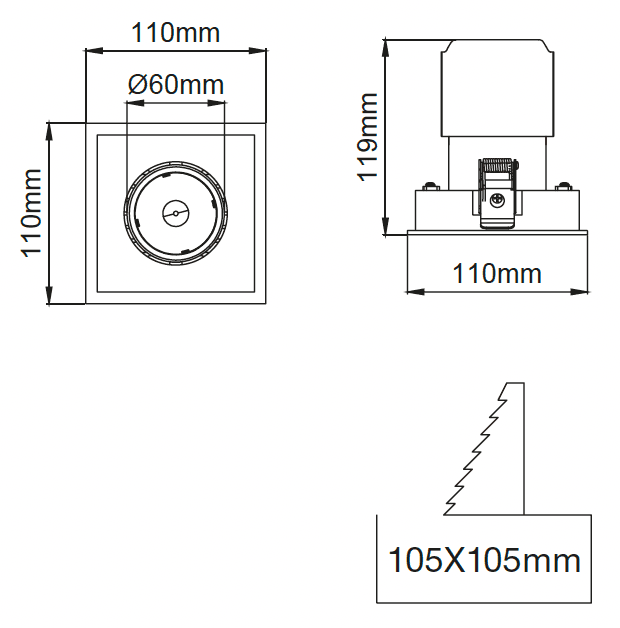

Teknik Çizimler
Kod Örneği
Luminaire codePowerKelvinReflector angleProduct color
