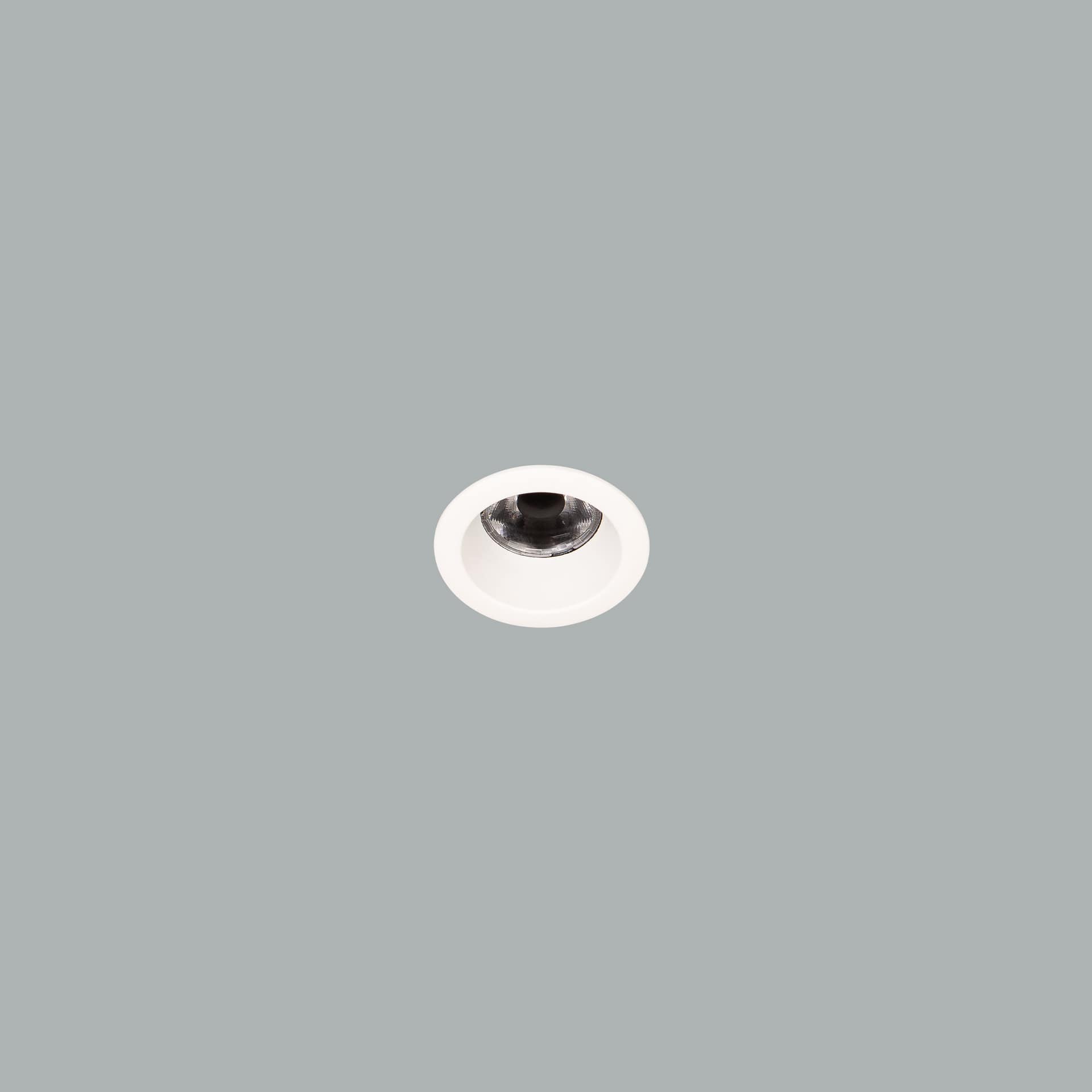

Cub Opto Micro
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 7W |
| Schutzklasse | IP44 |
| Form | eingebaut |
| Optisch | Linse |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Honeycomb and Color Filter, Viewfinder accessory options can be applied.
-- Very Narrow, Narrow, Medium, Wide and Very Wide lens angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LEDs.
-- Efficiency up to 130lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
Ürün Kodu Tablosu
| Stärke | CRI | Bestellcode | Kelvin | Lumen |
|---|---|---|---|---|
| 7W | CRI>80 | I01.MLR.14121 . (..) . (...) . (..) . (..) | 2700K | 721 |
| 3000K | 735 | |||
| 3500K | 749 | |||
| 4000K | 774 | |||
| 5000K | 789 | |||
| CRI>90 | I01.MLR.14121 . (..) . (...) . (..) . (..) | 2700K | 674 | |
| 3000K | 687 | |||
| 3500K | 700 | |||
| 4000K | 724 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.14121 . (..) . (...) . (..) . (..) | 2700K | 539 | |
| 3000K | 549 | |||
| 4000K | 579 |
| 2 | Watt – Antriebsstrom | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflektorwinkel | 5 | Produktfarbe | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

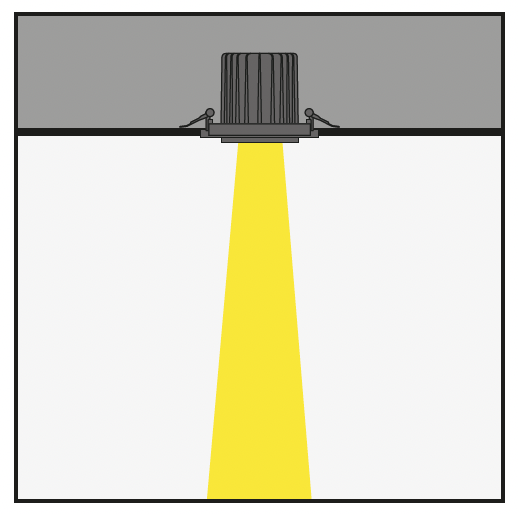

| 7 | 7W - 180mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SS | 16° - Super Spot |  | 01 | Weiß |

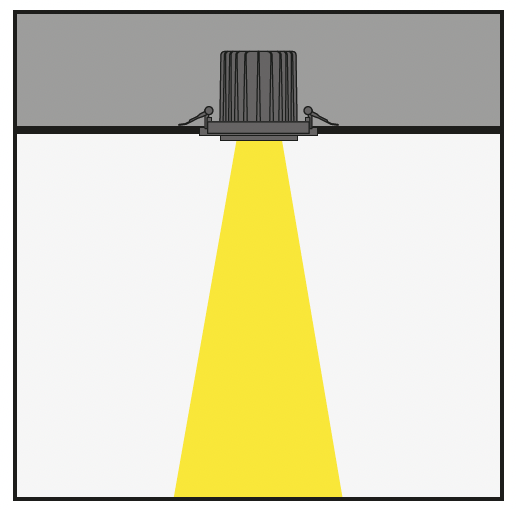

| 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | SP | 20° - Spot |  | 02 | ral 9010 | ||

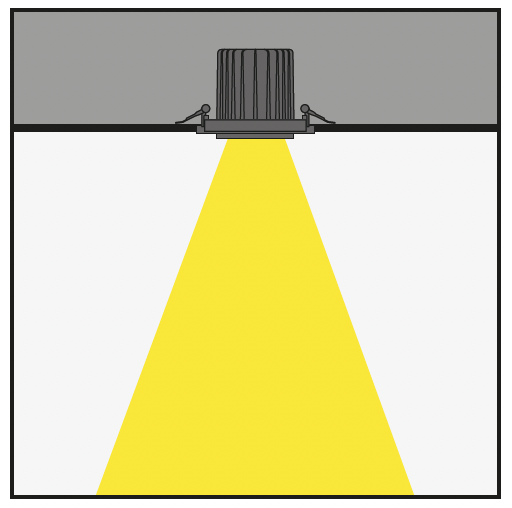

| 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | MICH. | 26° – Mittel |  | 03 | Schwarz | ||

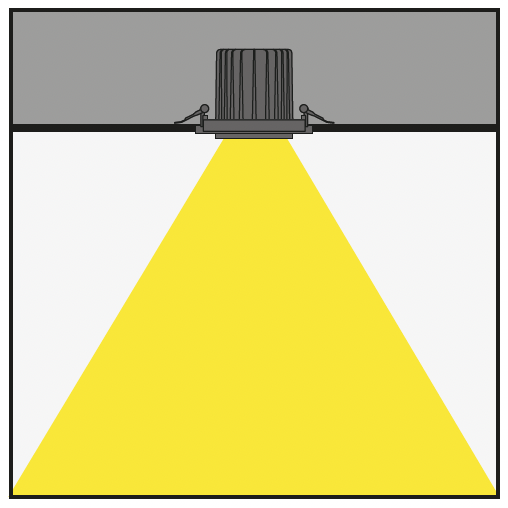

| 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | FL | 40° - Überschwemmung |  | 04 | grau | ||

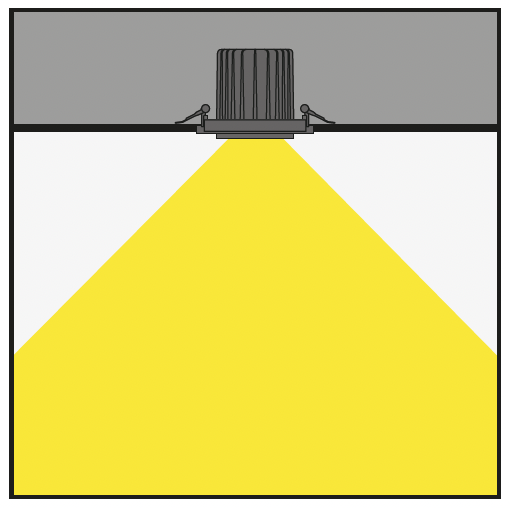

| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | W.F. | 50° – Breite Flut |  | 05 | dunkelgrau | ||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | Sonderfarbe |

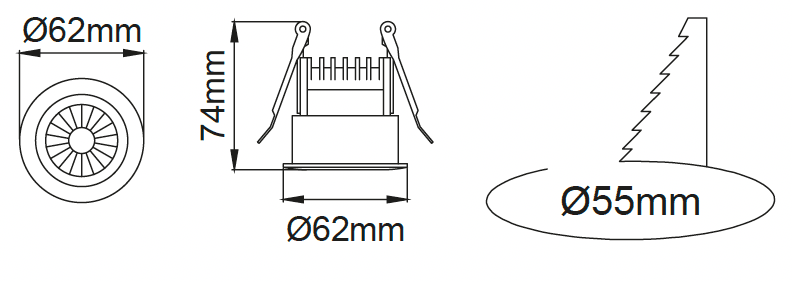

Teknik Çizimler
Kod Örneği
LeuchtencodeLeistungKelvinReflektorwinkelProduktfarbe
